Nizing Electric Wire & Cable Co., Ltd. > Wire Category > Anti-Refrigerant Wire > UL5048 Anti-Refrigerant Wire

Anti-Refrigerant Wire

UL5048

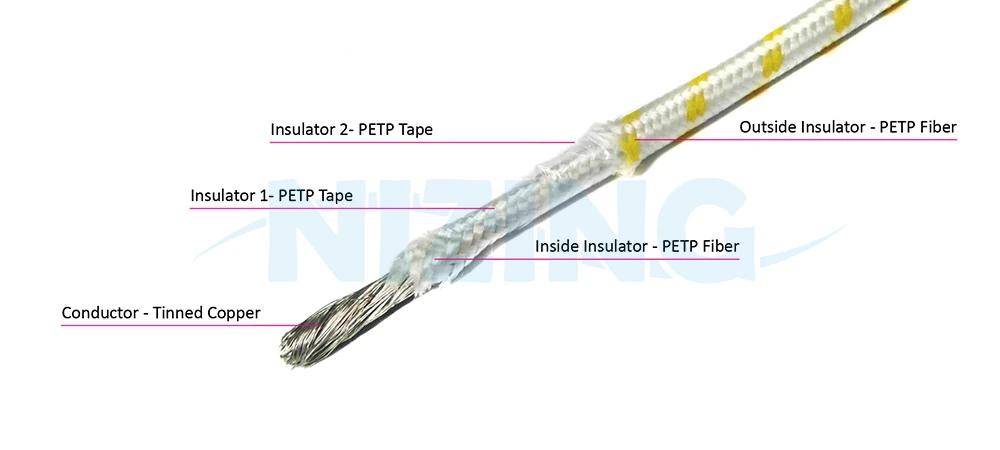

UL5048 Anti-Refrigerant PETP Insulation Wire is used as the external wiring of the airtight type freezing compressor motor.
Color:
Customize
UL ul5048
Applications
UL5048 Anti-Refrigerant PETP Insulation Wire is used as the external wiring of the airtight type freezing compressor motor.

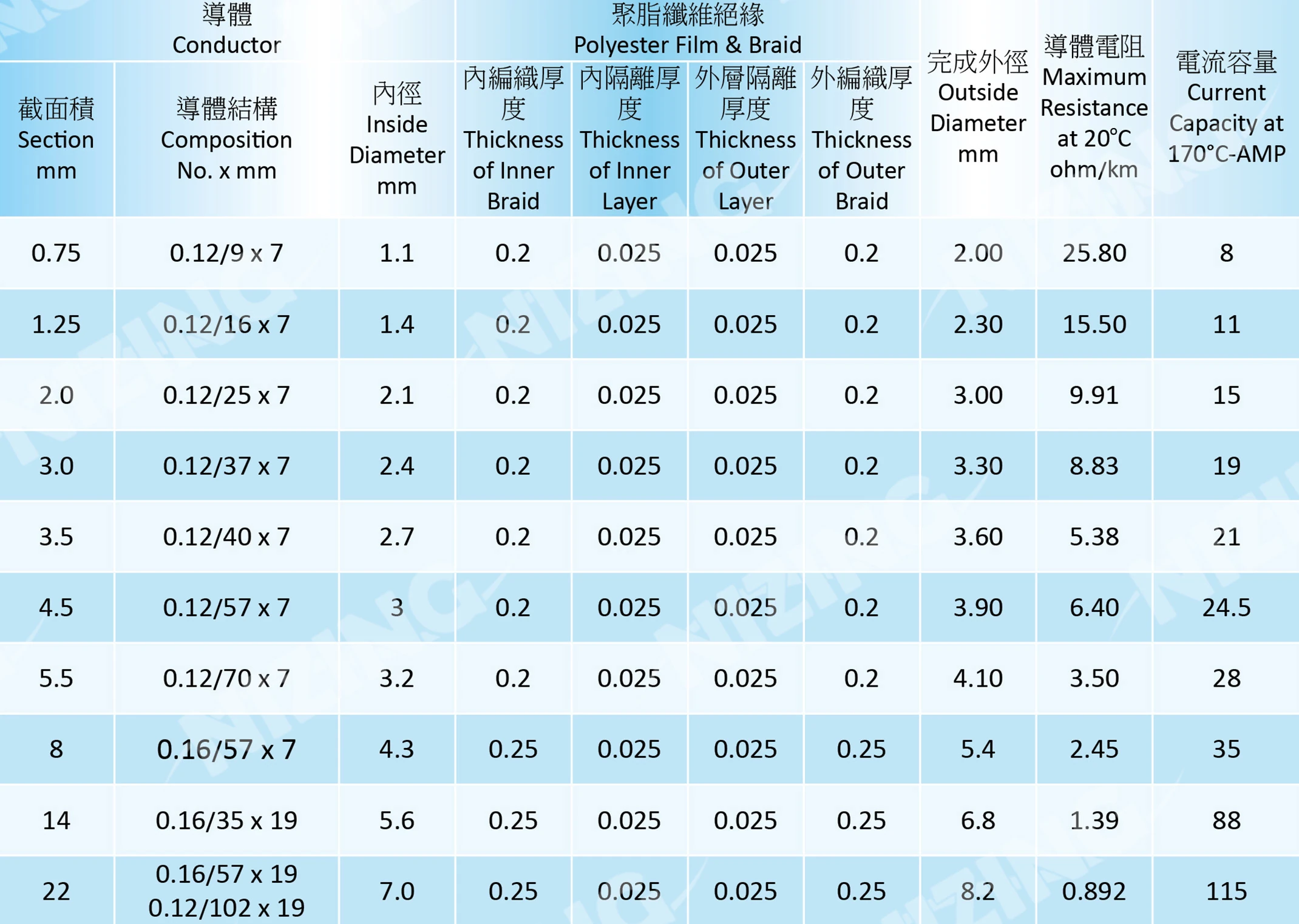

Technical Spec
Max VAC: 600V AC
Max Temp: 105C
Min Temp: -40C
Max DIA TOL: 1mm
Min DIA TOL: 0.1mm
Max Test V: 2000V
Min Test V: 1500V
iso9001
reach
rohs
Anti-Refrigerant Wire full spec
