Military Grade Wire

M22759

Color:
Applications

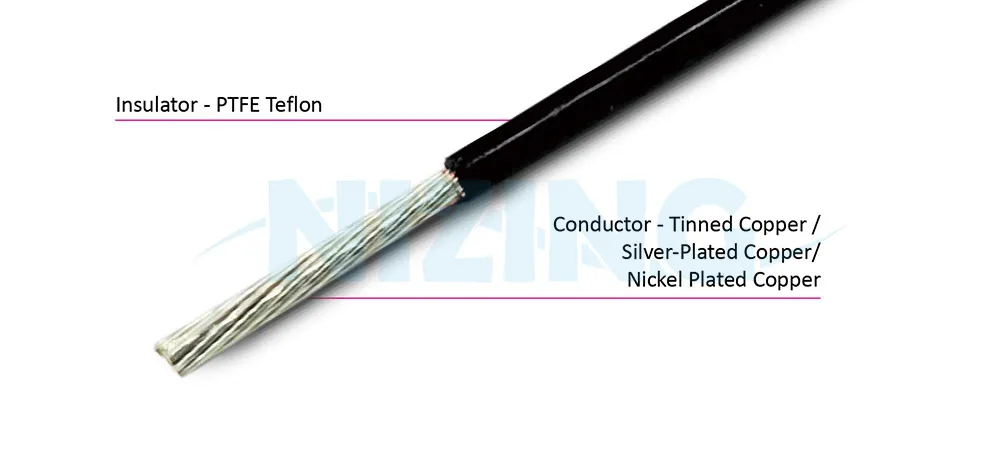

M22759 wire is a fluoropolymer insulated single conductor wire that is ideal for a wide variety of military aerospace applications. Since M22759 wire is built to meet military specifications, it is also the premier choice for many commercial applications. M22759 wire boasts high performance and reliability in severe wind and moisture prone (SWAMP) zones such as engine nacelles as well as areas that require overload stability, low smoke emission and fire resistance, such as aircraft cabins. M22759 wire can carry up to 1000 volts, and is capable of operating in extreme temperature ranges from -55°C to +260°C. We offer many different configurations of AS22759 wire. Choose copper or high strength copper alloy conductors coated with tin, silver, or nickel. We also provide a wide selection of insulation material options to meet your needs. Some of the distinctive characteristics offered by M22759 wire are: Excellent thermal stability • High reliability • High break strength and flex life • High abrasion resistance • M22759 wire is available in sizes ranging from 30 to 0000 AWG.
Technical Spec
Max Voltage: 1000V
Min Voltage: 600V
Max Temp: 260C
Min Temp: 150C
iso9001
reach
rohs

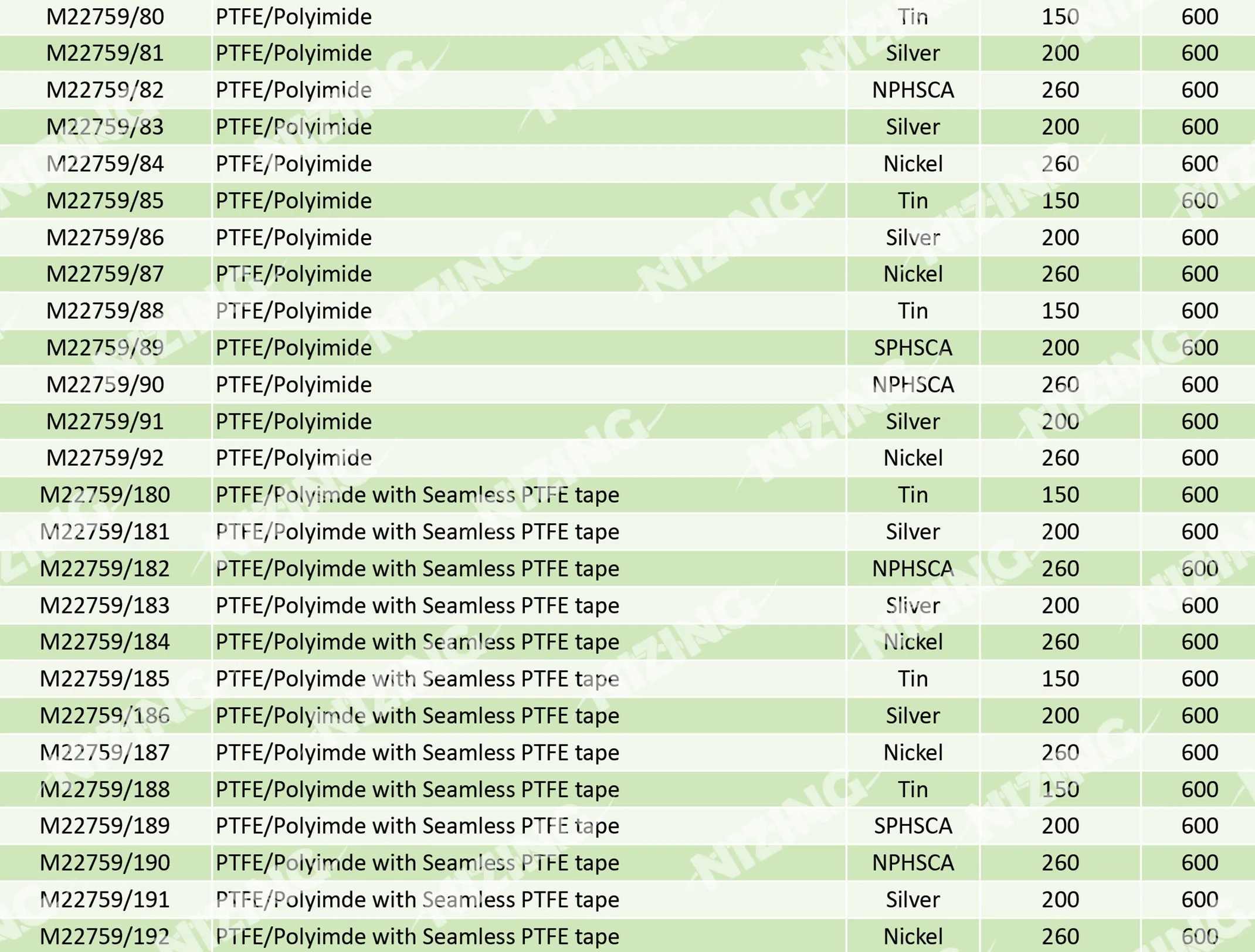

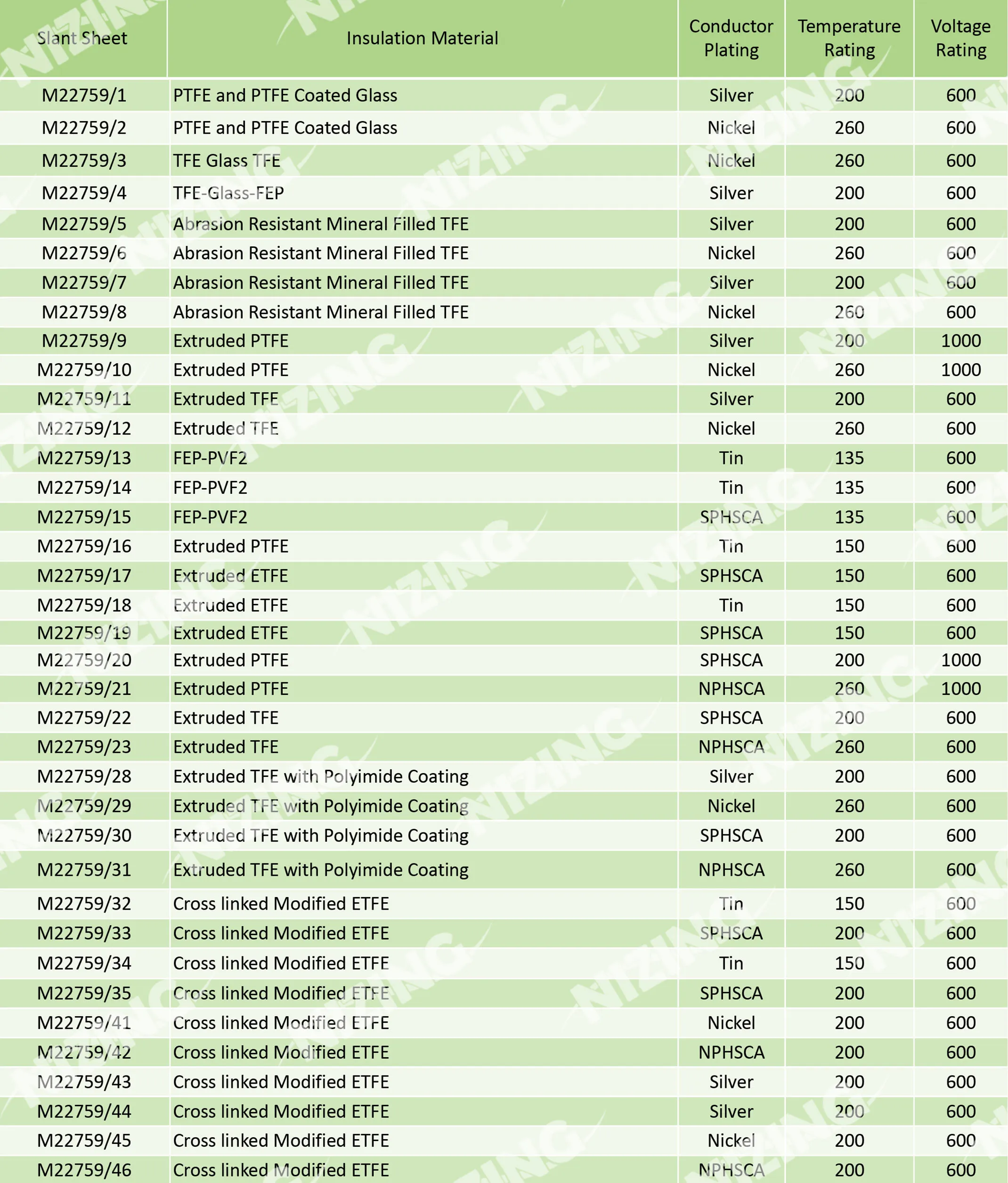

Military Grade Wire full spec
Military Grade Wire full spec
