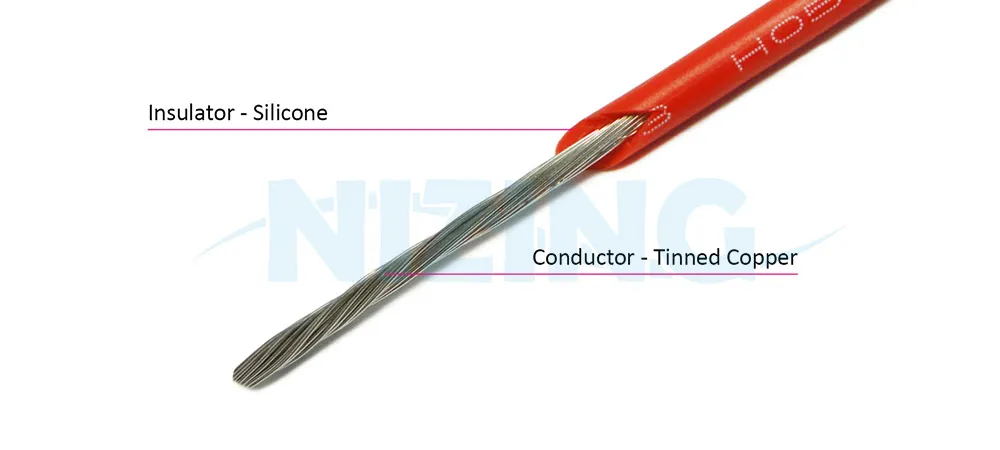

Silicone Wire

VDE-H05S-K

Color:
Applications
VDE-H05S-K Silicone Wire is suitable for fields that require high temperature endurance. Application ranges from household appliances, lighting devices, to industrial machines, and high-temperature furnaces.
Technical Spec
Max VAC: 300V AC
Max VDC: 500V DC
Max Temp: 180C
Min Temp: -40C
Max DIA TOL: 0.15mm
Min DIA TOL: 0.1mm
Max Test V: 2000V
iso9001
reach
rohs

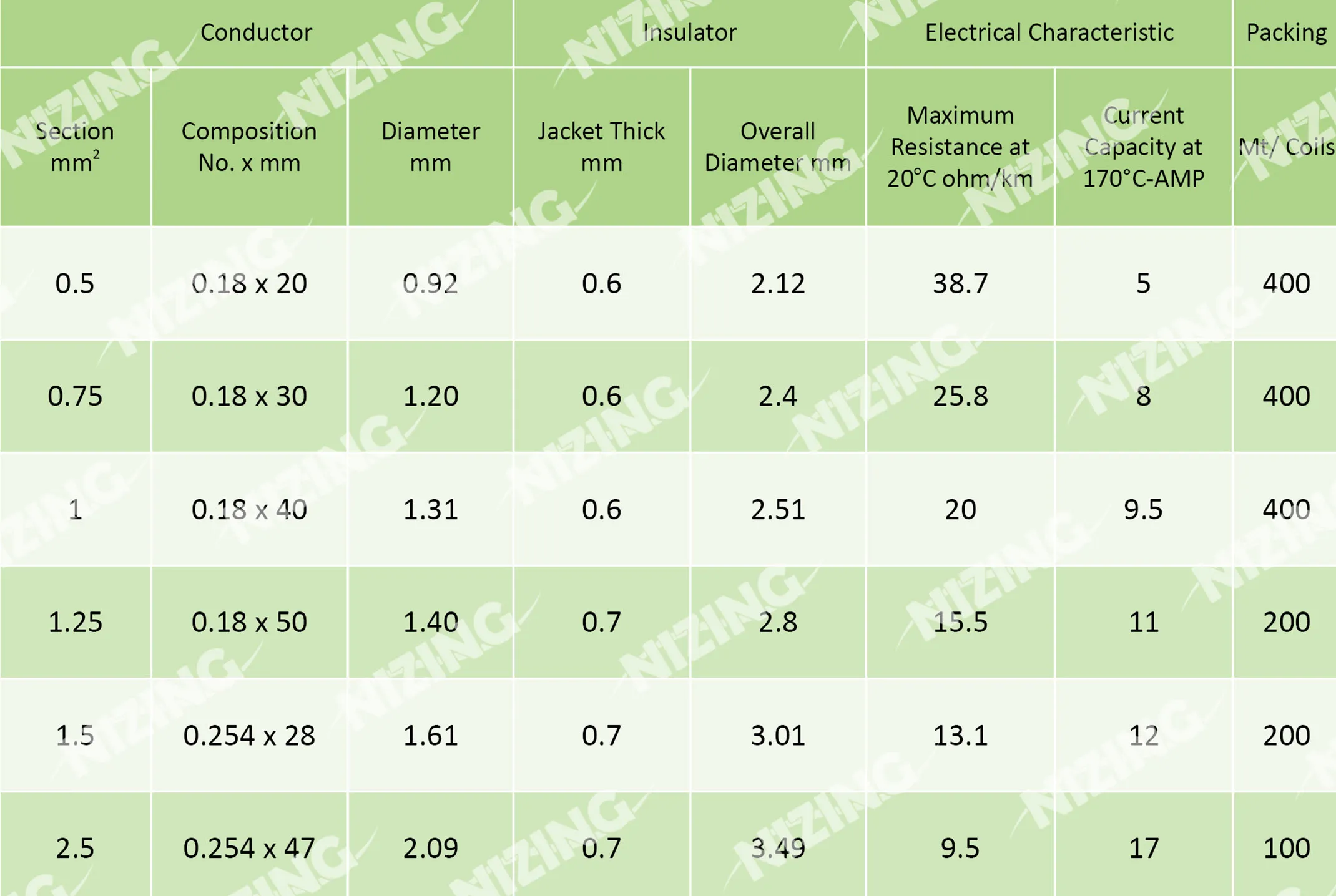

Silicone Wire full spec
