PFA Teflon Wire

UL1726

Color:
Applications

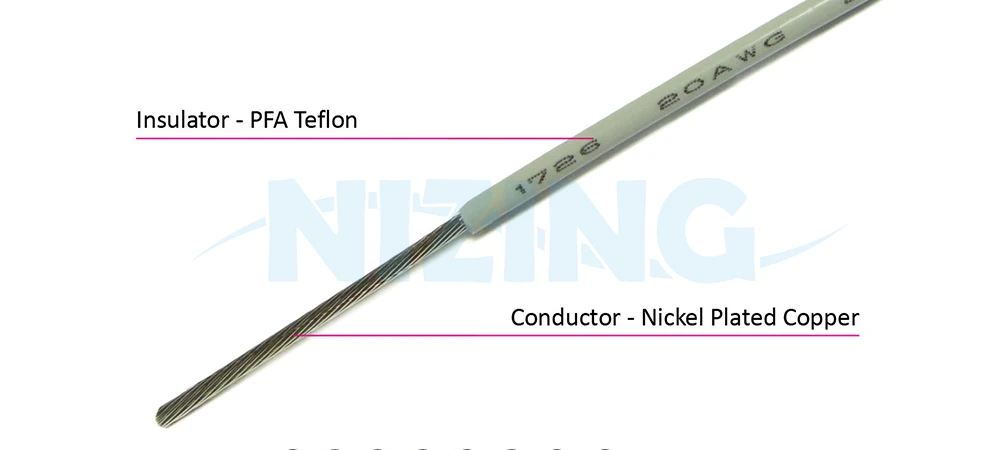

UL1726 PFA Teflon Wire is suitable for wiring in various high-temperature or precision eco-friendly environments, including household appliances, lighting fixtures, industrial machinery, electric heating products, raw material furnaces, energy storage systems, optical communication, AI robots, silicon photonics communication, marine vessels, aerospace, military applications, and automation equipment. Conductors with a diameter below 0.38 mm are made of nickel-plated copper, while conductors with a diameter of 0.38 mm and above are made of tin-plated copper.
Technical Spec
Max VAC: 300V AC
Max Temp: 250C
Min Temp: -80C
Max DIA TOL: 0.1mm
Max Test V: 2500V
cul
iso9001
reach
rohs
ul

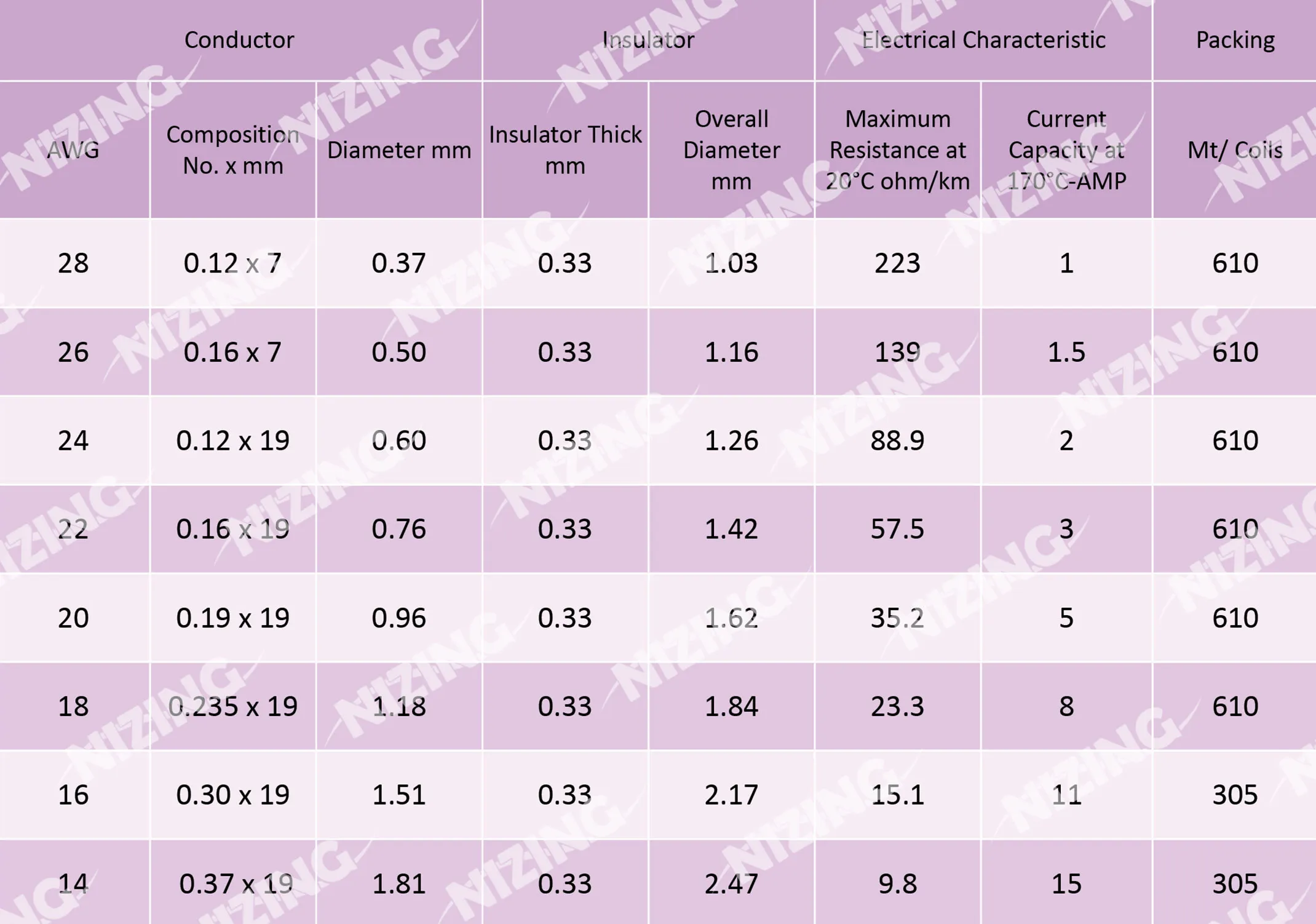

PFA Teflon Wire full spec
